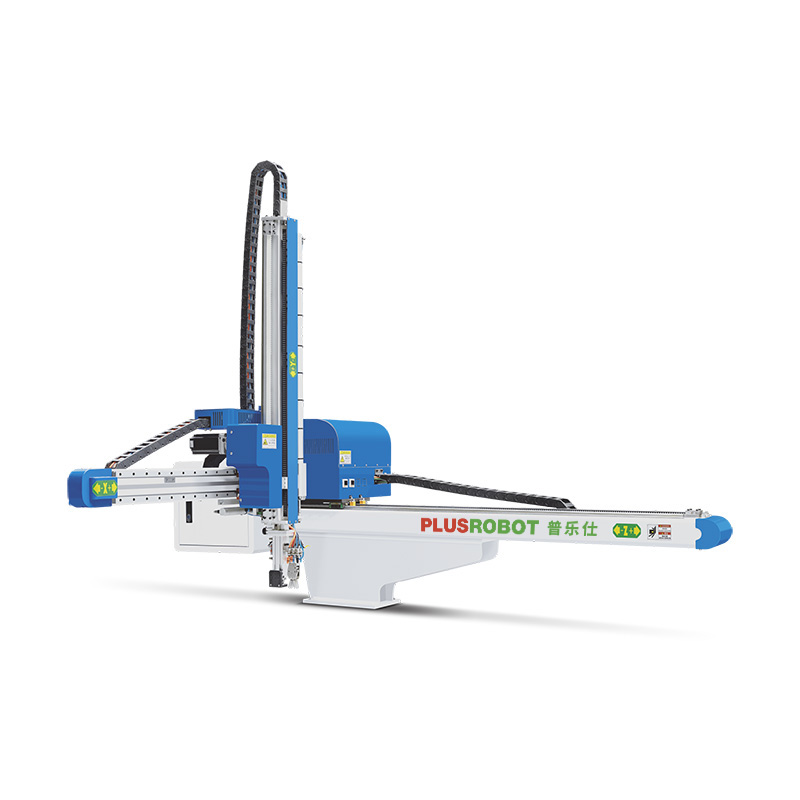

Hang-type Robot

It is suitable for thin wall product industry, such as lunch box, milk tea cup, medicine, food, cosm

◆ Steel-framed structure, installation with forward direction or reverse direction. ◆ 2 axis or 3 axis drive control is achievable. ◆ Take-out time from mould: 0.5s-1.0s. ◆ Mechanical & electrical integration, digital control,easy operation. ◆ Adopt high precision, high induction AC servo motor drive, more agile reponse speed. ◆ High precision slide rail, with synchronous belt, to achieve low noise, high speed running.

+86-188-1418-1331 Amber Huang

Inquiry

Features

Features：
◆ Steel-framed structure, installation with forward direction or reverse direction.
◆ 2 axis or 3 axis drive control is achievable.
◆ Take-out time from mould: 0.5s-1.0s.
◆ Mechanical & electrical integration, digital control,easy operation.

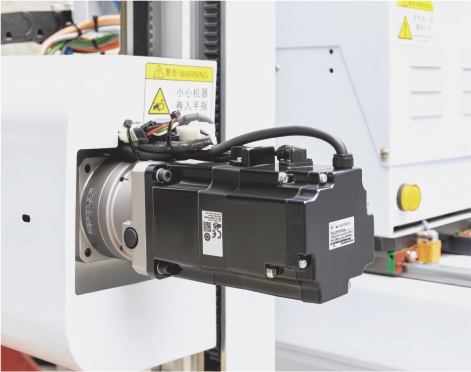

◆ Adopt high precision, high induction AC servo motor drive, more agile reponse speed.

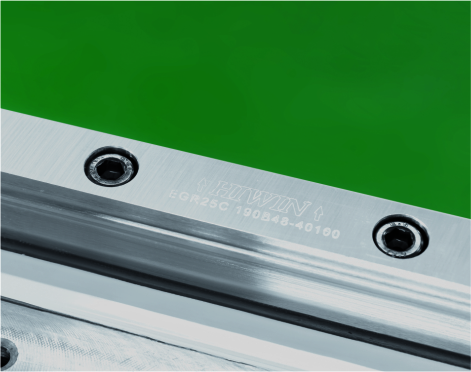

◆ High precision slide rail, with synchronous belt, to achieve low noise, high speed running.

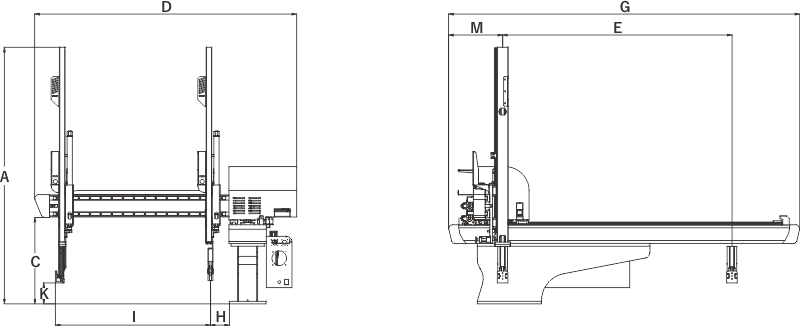

1-axis double arm with single stage

MODEL
A C D E G H I K M
FG-700 1400 470 1430 1150 1730
100
850 120 300
FG-800 1520 470 1430 1350 1910 100 850 120 300
FG-900 1640 470 1430 1350 1910 100 850 120 300

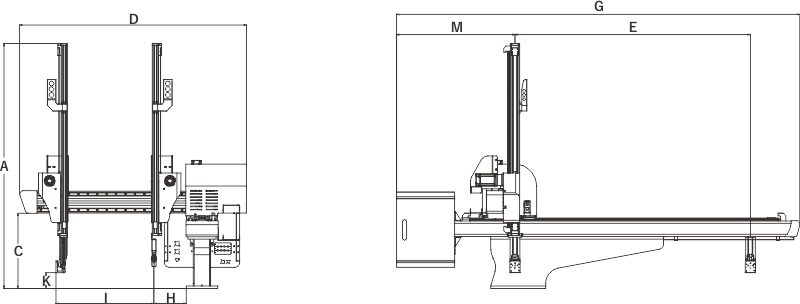

3-axis, 5-axis double arm with single stage

MODEL
A C D E G H I K M
FG-700 1450 480 1450 1100 2160
200
620 100 700
FG-800 1570 480 1450 1300 2340 200 620 100 700
FG-900 1690 480 1450 1300 2340 200 620 100 700
